C375 Sharp Cut-Off Filter
Radio Craftsmen Inc., The; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Craftsmen Inc., The; Chicago (IL)
- Year
- 1954/1955 ?
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 133538

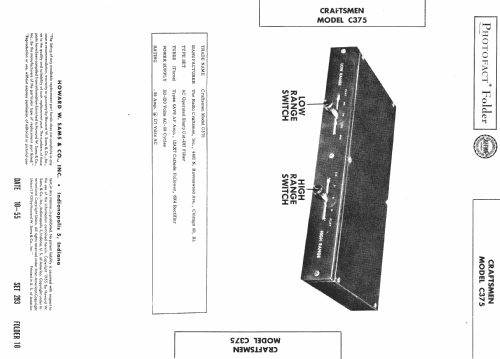

SAMS Photofact reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: C375 Sharp Cut-Off Filter - Radio Craftsmen Inc., The;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
The Radio Craftsmen model C375 is an AC operated Sharp Cut-Off Filter. Treble and Bass-Range can be changed in 5 steps each.
- Literature/Schematics (1)

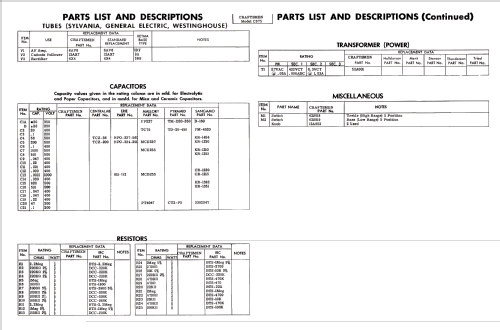

- Photofact Folder, Howard W. SAMS (Date 10-55, set 293, folder 10)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
