C900 FM Tuner
Radio Craftsmen Inc., The; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Craftsmen Inc., The; Chicago (IL)
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133560
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: C900 FM Tuner - Radio Craftsmen Inc., The;
- Shape
- Chassis only or for «building in»
- Notes
- The Radio Craftsmen model C900 is an AC operated FM superheterodyne tuner for custom installation. The tube are used for: 6BK7A RF Amp.; 6BK7A Mixer-AFC Amp.; 6BK7A FM Osc.-AFC Osc.; 3 x 6CB6 for IF Amp.; 6AU6 1st Limiter; 6CB6 2nd Limiter; 12AU7 AF Amp-Cathode Follower; 5Y3GT Rectifier.
- Literature/Schematics (1)

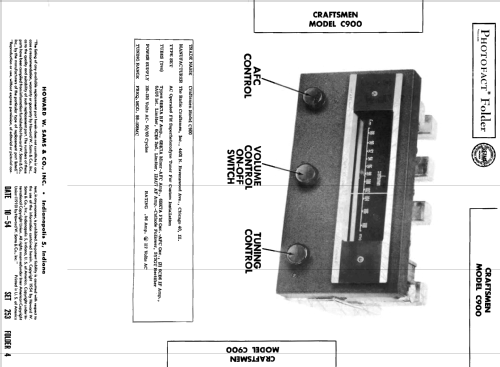

- Photofact Folder, Howard W. SAMS (Date 10-54, Set 253, Folder 4)
