- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Craftsmen Inc., The; Chicago (IL)
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349146

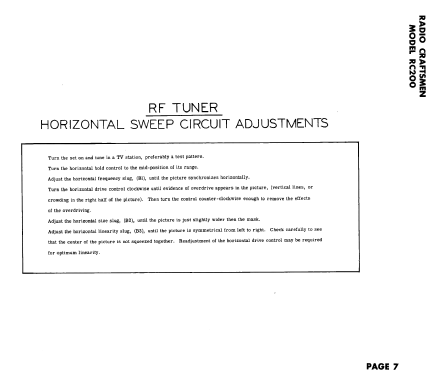

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6CB6 6CB6 6AB4 6CB6 6CB6 6CB6 6CB6 6AL5 6AU6 6AQ5 or 6AR5 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6C4 6W6GT 6W6GT 6AL7GT 6C4 12AU7 6SN7GTA 6SN7GTA 6AL5 12AU7 6BQ6GT 6W4GT 1B3GT
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: RC200 - Radio Craftsmen Inc., The;
- Shape
- Chassis only or for «building in»
- Notes
-
Radio Craftsmen model RC200 is a b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHV-tuner 250S48 and picture tube type not specified.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 140, folder 9, dated 7-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
