RC-201 B/W Television

Radio Craftsmen Inc., The; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1950–1952 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 133579

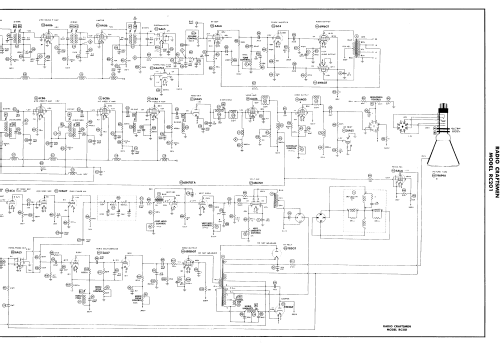

Click on the schematic thumbnail to request the schematic as a free document.

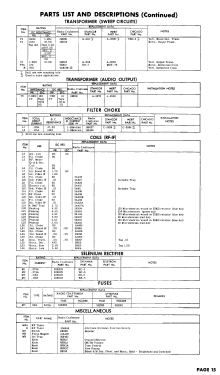

 Technical Specifications

  • Number of Tubes
  • 29
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm
  • Material
  • Metal case, TUBES VISIBLE
  • from Radiomuseum.org
  • Model: RC-201 B/W Television - Radio Craftsmen Inc., The;
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Radio Craftsmen model RC201 is a 19” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 194AP4A.

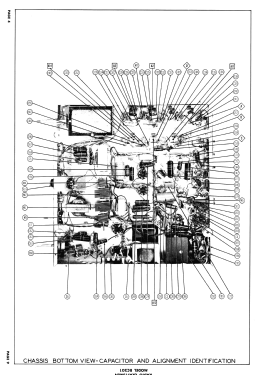

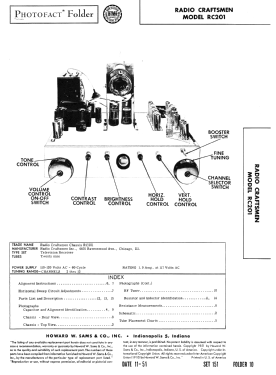

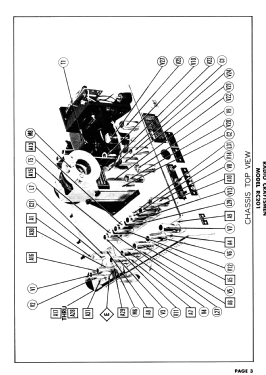

    The Radio Craftsmen model RC201 is mentioned by SAMS Photofact but we have not many details. It is a high quality chrome plated chassis with selectable picture tube to be put in custom cabinets. Options were 16" or 19" round and 21" rectangular. With additional cost of 43 $ at least in 1952 one could obtain a 24" picture tube (24AP4). The model allows a combination of detent and variable tuning which allows to tune the FM band. A magic Eye is employed for tuning. The tube line-up is the same as the chassis RC200. The set is for AC operation and consumes 225 Watts.



  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
