Sparkling Pepsi-Cola 12FL.OZ.
Radio Displays Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Displays Co.; Chicago (IL)
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214257
Photo by courtesy of Nelson Rodriguez (I)
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.75 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Sparkling Pepsi-Cola 12FL.OZ. - Radio Displays Co.; Chicago IL
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 8 x 24 x 8 inch / 203 x 610 x 203 mm
- Notes

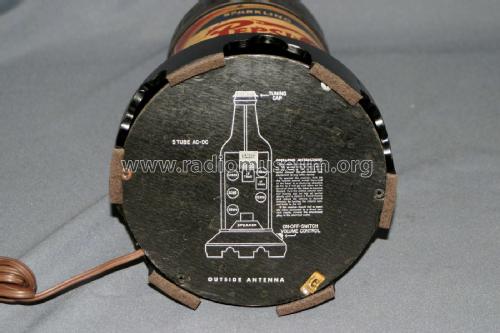

- Radio Displays Sparkling Pepsi-Cola 12FL.OZ.; Bottle styled radio.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
