• Country
• Germany

• Manufacturer / Brand
• Radio-Amato, Otto Lootze; Berlin

• Year
• 1924–1926

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 16171

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Detektor-Empfänger A 5011 - Radio-Amato, Otto Lootze;

• Dimensions (WHD)
• 85 x 55 x 110 mm / 3.3 x 2.2 x 4.3 inch

• Notes

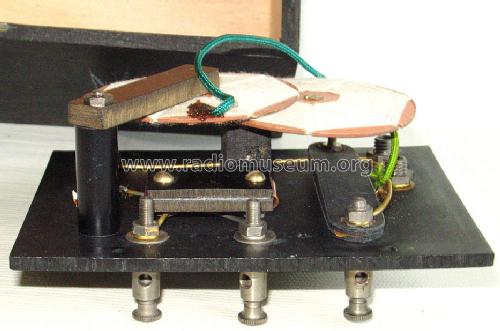

• mit Flachspulen-Variometer 180°; Ø = 53 mm.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (FG 55/1987 und 99/1994)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
