• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Columbus (Brand); Radio Centre Ltd.; Wellington

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304547

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Columbus 5A - Columbus Brand; Radio Centre

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

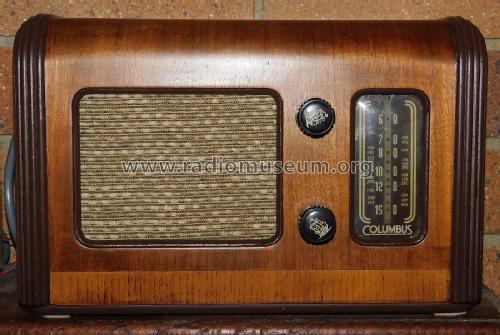

• Columbus Model 5A

  The model 5 series was in production for a few years and was released in four different variants with two valve lineups.  The models were the 5, 5A, 5B and 5M.

  The model 5 was originally specified to use an octal 6K6** output valve, although its likely that most have a 6V6.  There is also a release note stating it would most likely change to be a 6AQ5 in time.  It also showed an octal 6X5GT rectifier.  All subsequent models have a full miniature valve lineup.  The early schematic showing octal output and rectifier valves has no date or drawing number and may be a draft drawing, or an unofficial release to meet requests from service departments around the country.  A subsequently released 'Model 5' drawing dated August 1951, almost a year after the release note, shows all miniature valves.  Its unclear if RCNZ was referring to the original model 5 or all available variants at that time (although not all variants had the shown loop antenna).

  The later versions also had a better spread of the frequency band as can be seen on the dial scales.

  The model 5B has a wider dial, with a narrower speaker grill to compensate, and uses a standard aerial coil rather than the loop aerial the other models have.

• Mentioned in
• More Golden Age of Radio (Page 118 (Model 5B))

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
