- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Wire Television Inc.; New York - see also Lafayette
- Year
- 1950 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 52734

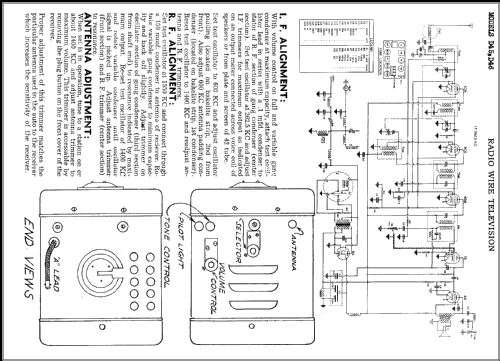

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- ZF/IF 262.5 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: D45 - Radio Wire Television Inc.;
- Shape
- Chassis only or for «building in»
- Notes
- Vibrator for +B.
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
