- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Wire Television Inc.; New York - see also Lafayette
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52742

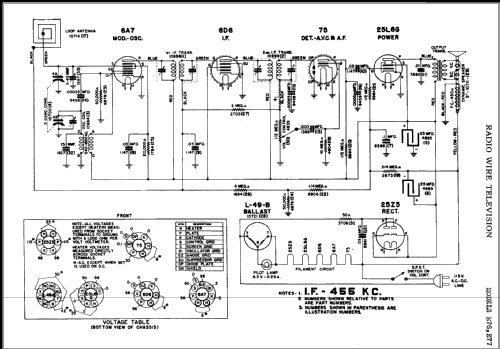

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: E77 - Radio Wire Television Inc.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Ballast tube: L-49-B.
Ivory plaskon. Same model available in brown bakelite: model E76.
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 107.)
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
