Picoskop EO1/7

• Country
• Germany

• Manufacturer / Brand
• Radio-Fernsehen-Elektro, PGH; Marienberg ; (Ostd.)

• Year
• 1963–1968 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 79624

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

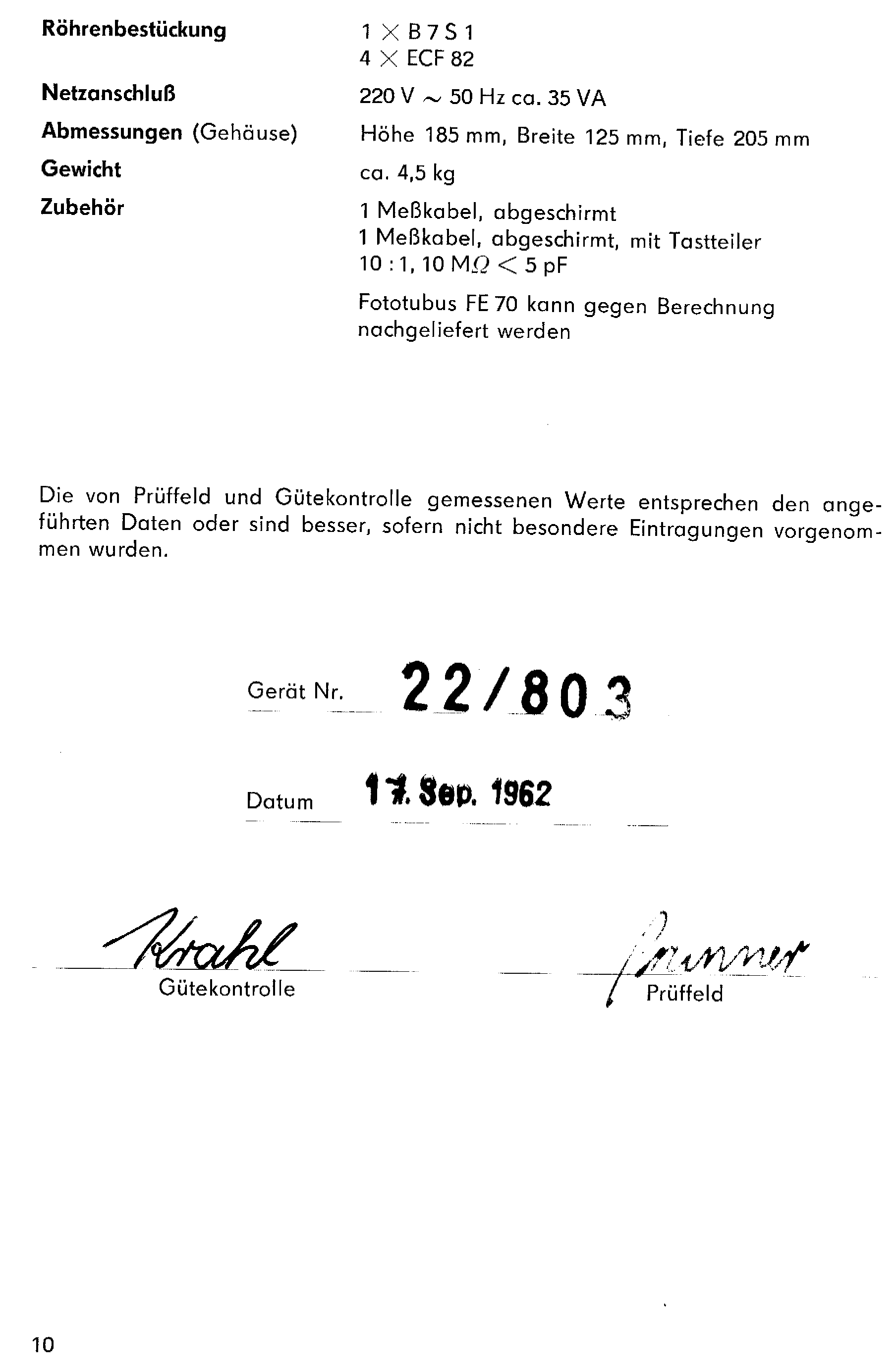

• Number of Tubes
• 5

• Valves / Tubes
• ECF82 ECF82 ECF82 ECF82 B7S1

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org

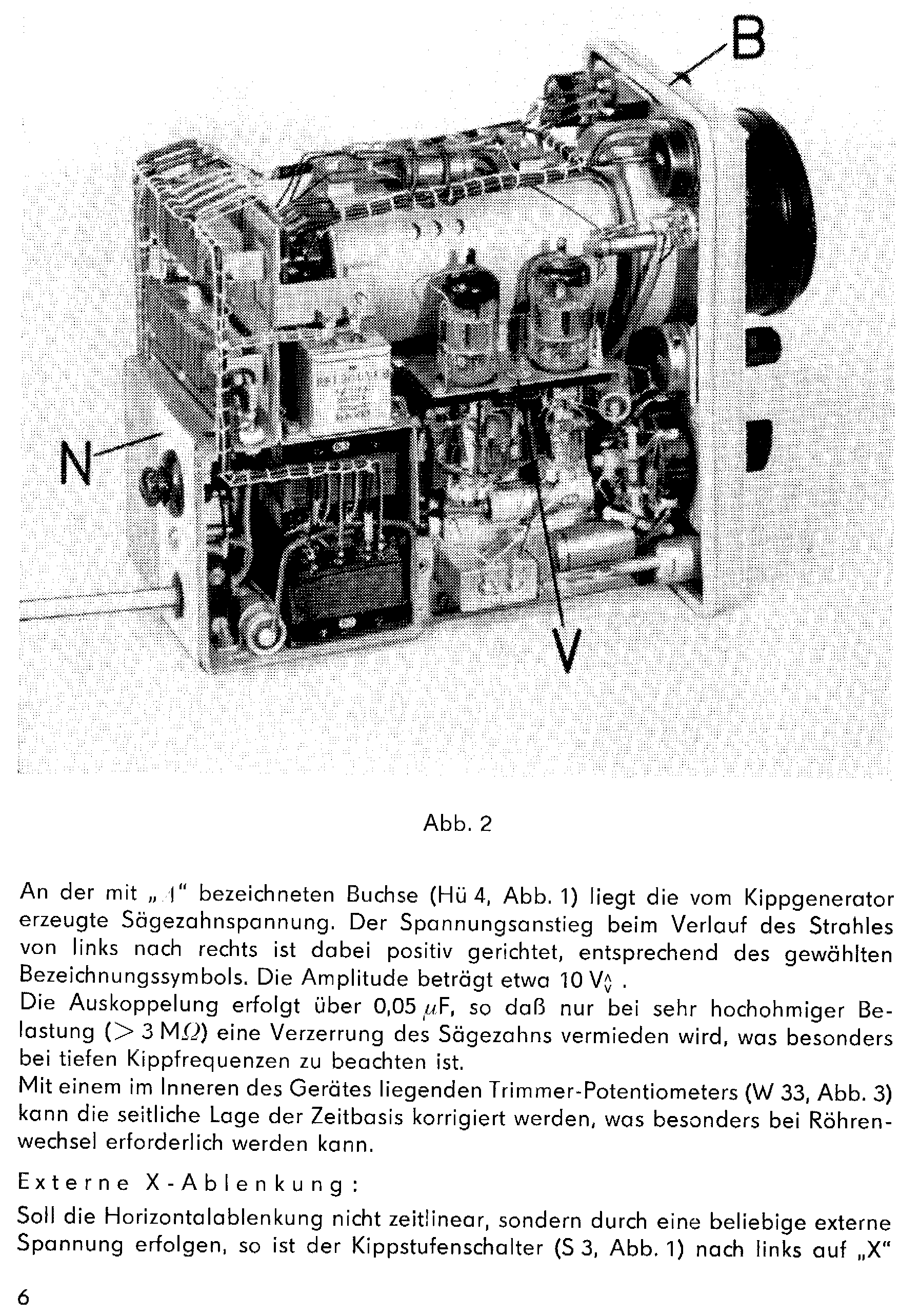

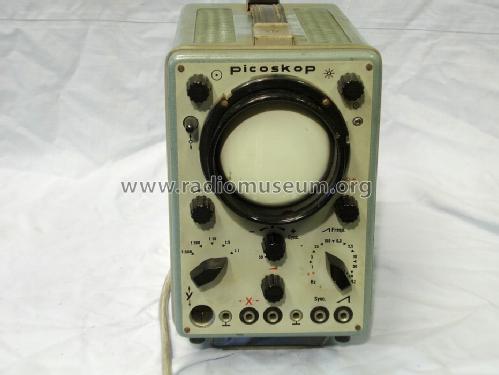

• Model: Picoskop EO1/7 - Radio-Fernsehen-Elektro, PGH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 125 x 185 x 205 mm / 4.9 x 7.3 x 8.1 inch

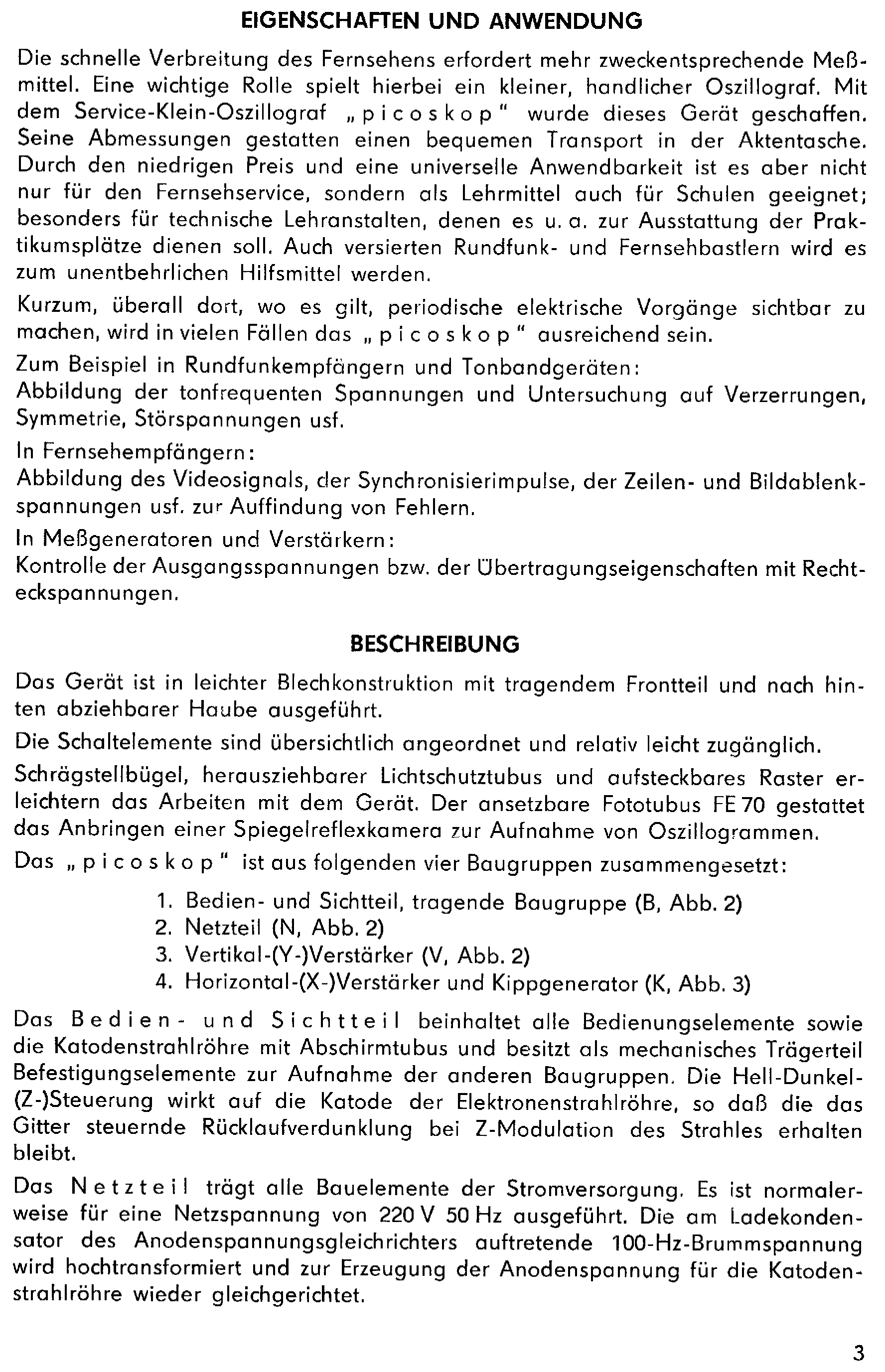

• Notes

• Service-Kleinoszillograf 2,5 Hz bis 1 MHz. - Entwickelt 1959 und bis ca. 1963 gebaut in TPW (Techn. Physikal. Werkstätten Thalheim).

  Vertrieb auch in Westdeutschland durch RADIO-FERN Elektronik (348 DM incl. Zubehör).

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 611.00 DM

• External source of data
• Eigenes Gerät

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Anders, Schaltungssammlung der Meßgeräte, 1979

• Literature/Schematics (1)
• Katalog RADIO FERN ELEKTRONIK GmbH, Essen

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.

• Other Models

• Here you find 12 models, 11 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radio-Fernsehen-Elektro, PGH; Marienberg ; (Ostd.)
