• Country
• Czechoslovakia

• Manufacturer / Brand
• Radio Havel, Praha

• Year
• 1933/1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71180

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• E499 E443H 506

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

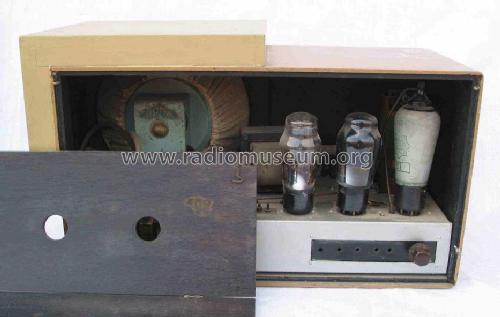

• Model: Legie special - Radio Havel, Praha

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 275 x 235 mm / 18.1 x 10.8 x 9.3 inch

• Price in first year of sale
• 1,250.00 kc

• Mentioned in
• -- Original prospect or advert
