• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Wire Television Inc.; New York - see also Lafayette

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 52781

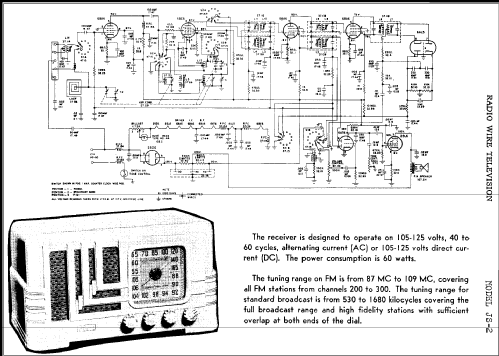

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6BE6 6BA6 6BA6 6AL5 6AT6 25L6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: JS-2 - Radio Wire Television Inc.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Author
• Model page created by Peter Rutishauser. See "Data change" for further contributors.
