• Country
• Spain

• Manufacturer / Brand
• Radio Marchán; Lak; Madrid

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 265071

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

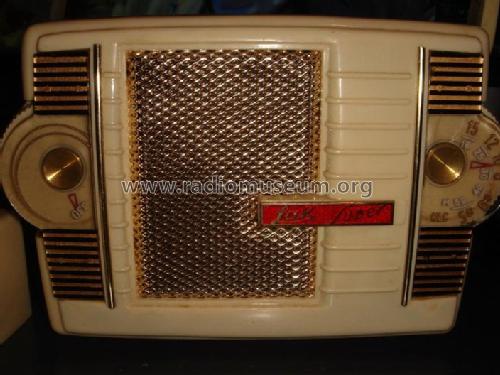

• Model: Super - Radio Marchán; Lak; Madrid

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 170 x 120 x 100 mm / 6.7 x 4.7 x 3.9 inch

• Notes

• Modelo: SUPER - Radio Marchán; Lak; Madrid

  Wave band switch at the rear side.

• Author
• Model page created by Carlos Insa Gracia. See "Data change" for further contributors.
