- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Wire Television Inc.; New York - see also Lafayette
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52801
Sams Photofact Folders

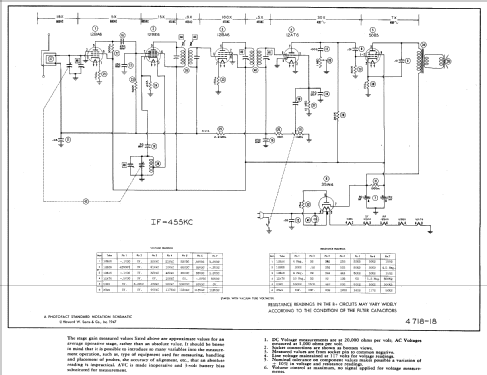

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: MC-11 - Radio Wire Television Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
- Alternative tubes assembly: 14A7 14Q7 14A7 14B6 35A5 35Z5 or 12SK7 12SA76 12SK7 12SQ7 35L6 35W4.
Photofact see under Trade : Lafayette.
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-47, Set 28, Folder 4718-18)
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
