- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Wire Television Inc.; New York - see also Lafayette
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52802
SAMS Photofact

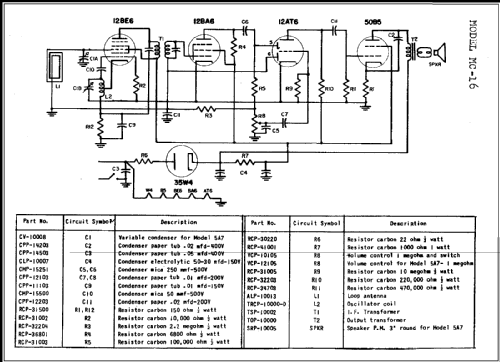

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: MC-16 - Radio Wire Television Inc.;
- Shape
- Tablemodel, with any shape - general.
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (4)

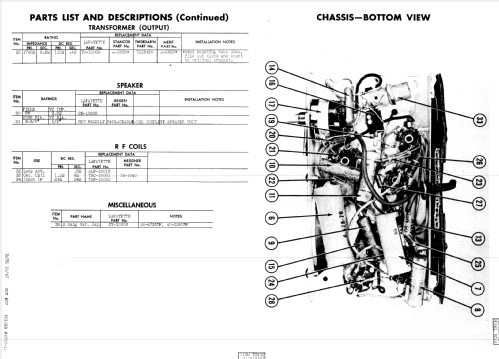

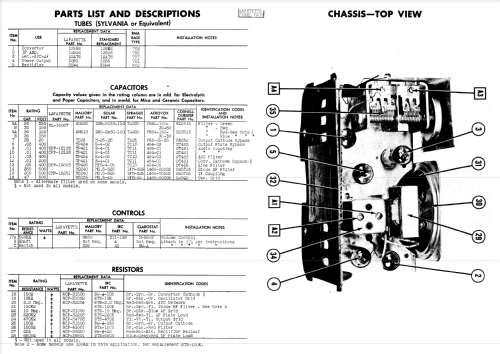

- Photofact Folder, Howard W. SAMS (Set 27, Date 10/47, Folder 4717-16)
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
