Hectodino
Radio Saturno; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Radio Saturno; Barcelona
- Year
- 1928 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339994

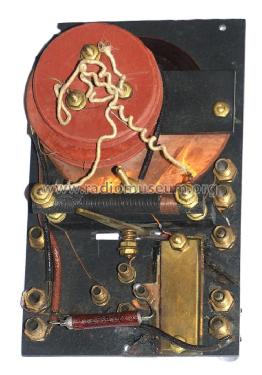

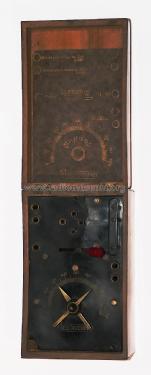

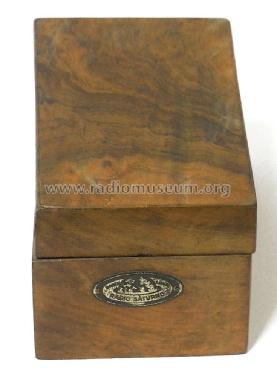

Eigenes Gerät, eigenes Foto
Eigenes Gerät, eigenes Foto
Eigenes Gerät, eigenes Foto
Eigenes Gerät, eigenes Foto
- Number of Tubes
- 1
- Valves / Tubes
- RE034
- Main principle
- TRF with regeneration; none
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 4 & 90 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hectodino - Radio Saturno; Barcelona
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 95 x 82 x 149 mm / 3.7 x 3.2 x 5.9 inch
- Notes
-

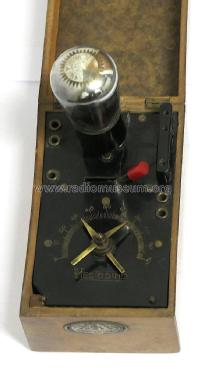

Reisegerät. Röhre und Batterien müssen getrennt transportiert werden. Roter Hebel oben: Heizspannung, unterer Zeiger: Abstimm-Drehko, oberer Zeiger: Rückkopplung (Variometer)
- Net weight (2.2 lb = 1 kg)
- 0.420 kg / 0 lb 14.8 oz (0.925 lb)
- Author
- Model page created by Klaus Buchner. See "Data change" for further contributors.
