Realistic Flavoradio 12-203
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1987–1992
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178377
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic Flavoradio 12-203 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 68 x 104 x 32 mm / 2.7 x 4.1 x 1.3 inch
- Notes
-

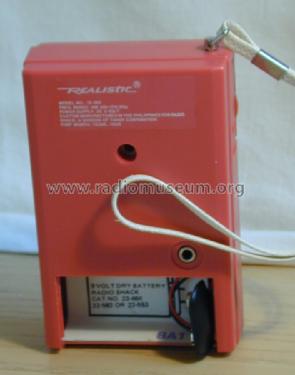

Realistic 12-203 Flavoradio pocket radio with carrying strap, earphone socket at back of unit.
Various colors known. Assembled in the Philippines.Model Cabinet 12-201 Blackberry 12-202 Blueberry 12-203 Strawberry
- Net weight (2.2 lb = 1 kg)
- 0.150 kg / 0 lb 5.3 oz (0.33 lb)
- Price in first year of sale
- 6.95 $
- Literature/Schematics (1)
- Radio Shack Catalog (1987 p. 79)
- Literature/Schematics (2)
- Radio Shack Catalog (1989, No. 432, page 101, 1990, No. 446, page 97.)
- Literature/Schematics (3)
- Radio Shack Catalog (1991, No.459, page 33.)
- Literature/Schematics (4)
- Radio Shack Catalog (1992, No. 472, page 43.)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
