• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140083

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 120 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Realistic Patrolman 3 12-757 - Radio Shack Tandy, Realistic,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 6.5 x 8.5 x 2.75 inch / 165 x 216 x 70 mm

• Notes

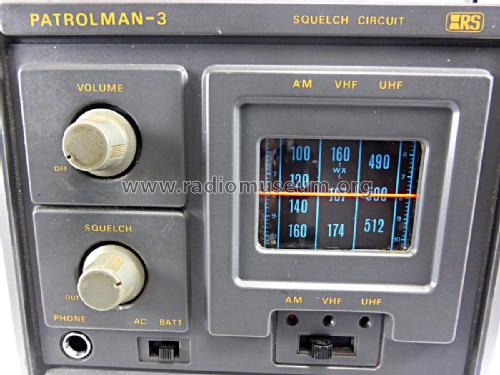

• Realistic Patrolman 3, 12-757;
  Coverage 3 bands:
  AM-MW,
  VHF hi: 144 - 174 MHz,
  UHF: 450 - 512 MHz,
  squelch control, AFC, rolled-film style dial, headphones jack, telescopic antenna.

• Price in first year of sale
• 60.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Radio Shack Catalog (1976 Catalog, page 144)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
