Realistic VHF/UHF Scanner PRO-2003 (20-9117)
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1984
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 221127
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 41
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 220-240 / 12-15 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic VHF/UHF Scanner PRO-2003 - Radio Shack Tandy, Realistic,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 80 x 28.5 x 23 mm / 3.1 x 1.1 x 0.9 inch
- Notes

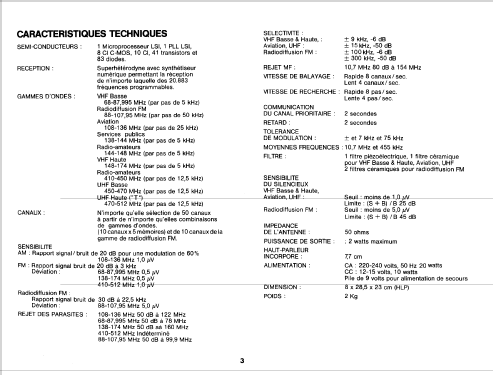

- Ce récepteur AM/FM à balayage programmable (scanner) reçois les gammes VHF de 68-87.995 / 88-107.95 / 108-136 / 138-174 MHz et UHF de 410-512MHz. Possède un afficheur fluorescent FG137D6. Pour les autres caractéristiques, voir le manuel de l'utilisateur.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 3,795.00 FF
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
