• Country
• Spain

• Manufacturer / Brand
• Radio Aragon; Sideral; Ramar; Zaragoza

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249629

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6V6GTY 5Y3GT

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

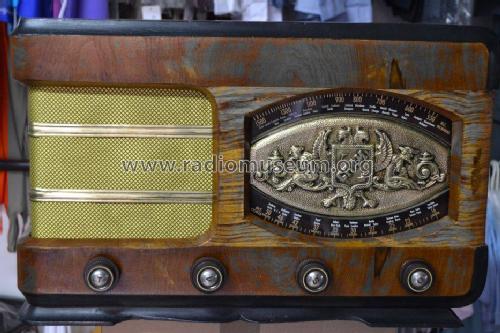

• Model: Gram - Radio Aragon; Sideral; Ramar;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 340 x 260 mm / 21.7 x 13.4 x 10.2 inch

• Author
• Model page created by Juan Jose Roncal. See "Data change" for further contributors.
