• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80216

• • Brand: Radiobell

• Number of Tubes
• 6

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G Y63 5Z4G

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

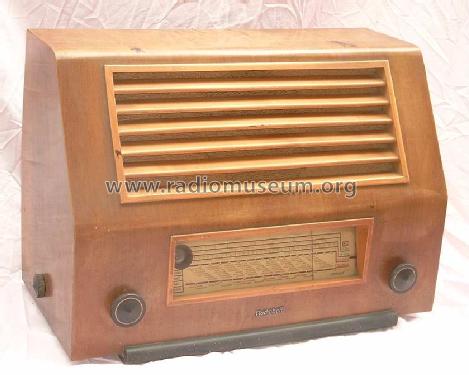

• Model: Radiobell 148 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 425 x 315 mm / 23.6 x 16.7 x 12.4 inch

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 284 models, 243 with images and 116 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
