• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1943/1944

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81411

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

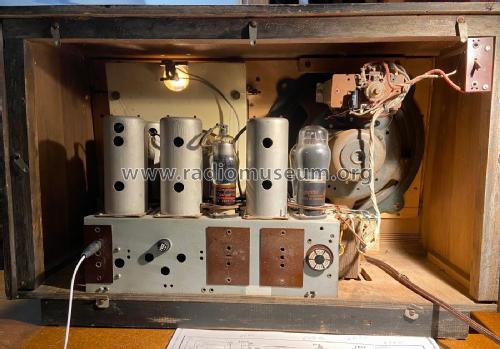

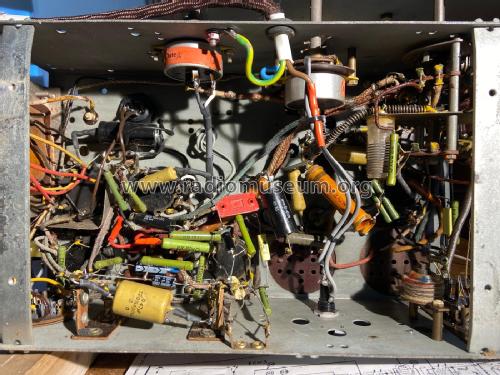

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz

• Tuned circuits
• 7 AM circuit(s)

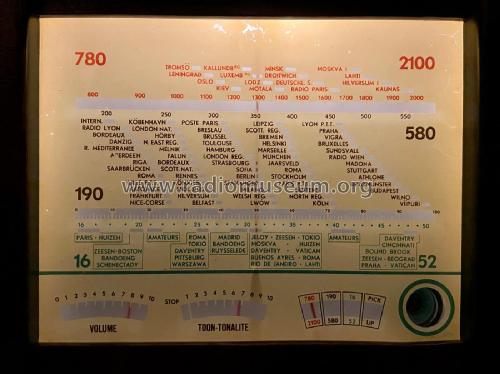

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiobell 44 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 370 x 250 mm / 22.8 x 14.6 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Patrick Mergan † Dec. 21, 2009. See "Data change" for further contributors.
