• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1952/1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122298

• • Brand: Radiobell

• Number of Tubes
• 7

• Valves / Tubes
• 7A7 7S7 7A7 7B6 6U5 7C5 5Y3

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

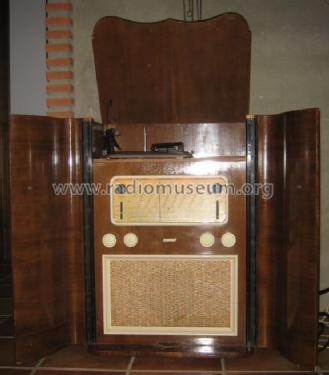

• Model: Radiobell Consolette Luxe - Bell Telephone Mfg. Co.

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 610 x 950 x 450 mm / 24 x 37.4 x 17.7 inch

• Notes
• Chassis = Radiobell Melodic. Auto-changer with 3 speeds.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Leo Snoeren. See "Data change" for further contributors.
