• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1955/1956 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168076

• • Brand: Radiobell

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EAF42 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt

• Loudspeaker
• Ø 16 cm = 6.3 inch

• Power out
• 3.9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

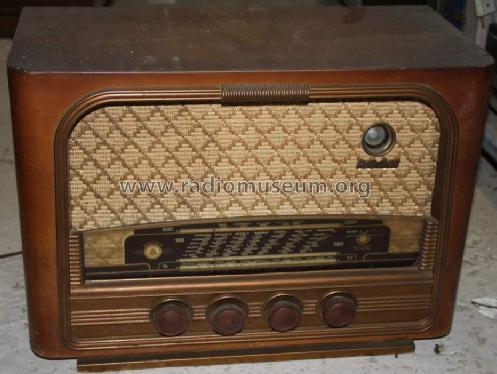

• Model: Radiobell RB310 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 330 x 240 mm / 18.5 x 13 x 9.4 inch

• Notes

• For an almost identical schematic: see model RB300.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
