• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83269

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

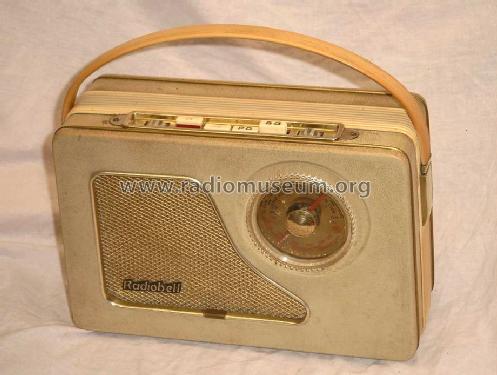

• Model: Radiobell 115 - Bell Telephone Mfg. Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 180 x 95 mm / 10.6 x 7.1 x 3.7 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 3,250.00 bef

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
