• Country
• Belgium

• Manufacturer / Brand
• Radio-Bourse (Rexola, Rex); Bruxelles

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212943

• • Brand: Rexola

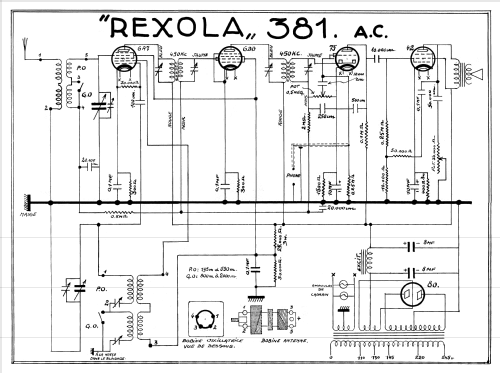

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Rexola 381A - Radio-Bourse Rexola, Rex;

• Notes

•

• Price in first year of sale
• 1,075.00 BEF

• Source of data
• Manuel de la Radio 1940, van Cortenberghe

• Literature/Schematics (1)
• -- Schematic
