• Country
• Spain

• Manufacturer / Brand
• Radiodina (Aznárez, Pedro); Zaragoza

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 326047

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org

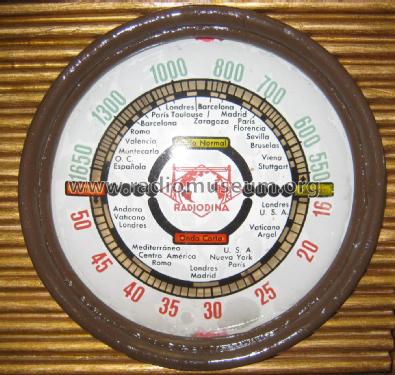

• Model: 315 - Radiodina Aznárez, Pedro;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 315 x 215 x 190 mm / 12.4 x 8.5 x 7.5 inch

• Notes

• Radiodina (Aznárez, Pedro), modelo 315

  Sumatorio Filamentos=116,6 V.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Author
• Model page created by Mariano Crucera Ramos. See "Data change" for further contributors.
