• Country
• Portugal

• Manufacturer / Brand
• Radio Escola, Lisboa

• Year
• 1955 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 270412

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EBC81 EL84 EM81 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

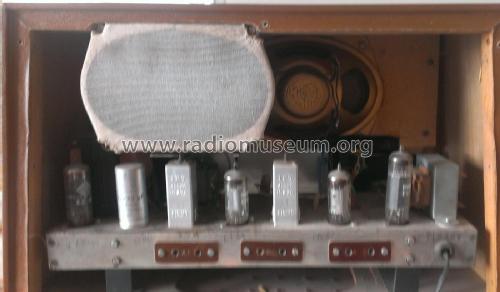

• Model: Radio Kit de Ensino - Radio Escola, Lisboa

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 435 x 280 x 220 mm / 17.1 x 11 x 8.7 inch

• Author
• Model page created by Justo Puertas-Paule. See "Data change" for further contributors.

• Other Models

• Here you find 28 models, 27 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
