• Country
• Italy

• Manufacturer / Brand
• Fortuna Radio; Milano

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174246

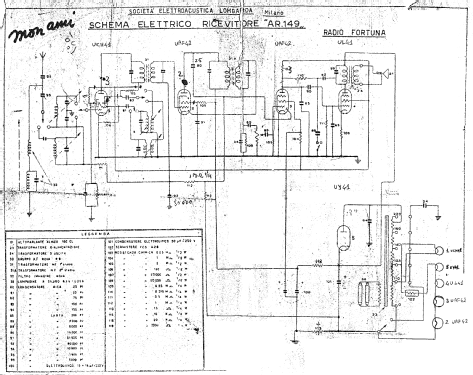

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Mon ami 149 [Bauletto] - Fortuna Radio; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 190 x 130 mm / 11.8 x 7.5 x 5.1 inch

• Notes

• Mobile a forma di bauletto, in legno rivestito in pelle con finiture oro.

  Vedi anche la variante Scrigno.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
