• Country
• Soviet Union

• Manufacturer / Brand
• Radiopribor n. S.P. Korolyov; Kiev

• Year
• 1993 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 358786

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz; Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 × 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.45 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

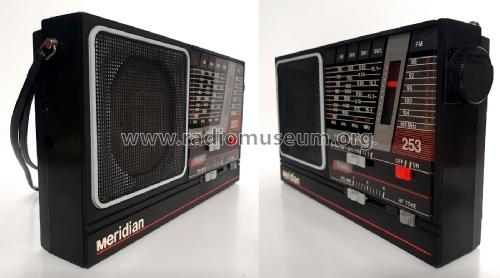

• Model: Меридиан 253 Meridian 253 [Export] - Radiopribor n. S.P. Korolyov;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 212 x 118 x 42 mm / 8.3 x 4.6 x 1.7 inch

• Net weight (2.2 lb = 1 kg)
• 0.560 kg / 1 lb 3.7 oz (1.233 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.

• Other Models

• Here you find 41 models, 38 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radiopribor n. S.P. Korolyov; Kiev
