• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Rolls (brand), Stevens and Sons Limited; Christchurch

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334034

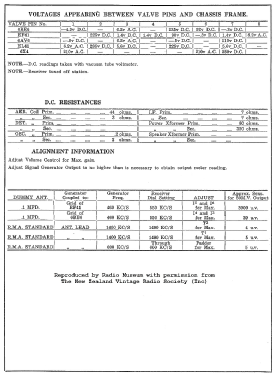

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 EF41 6AV6 EL41 6X4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

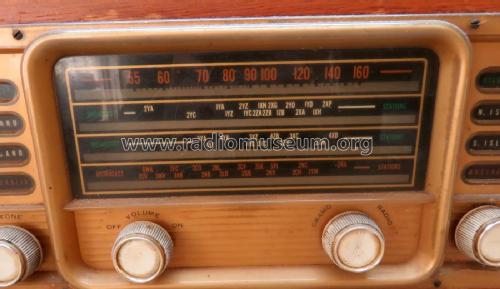

• Model: Rolls Ch= RCD - Rolls brand, Stevens and Sons

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• 5- valve, AC-Powered Superheterodyne.

  See also Courier RCD and Ultimate RCD.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
