• Country
• United States of America (USA)

• Manufacturer / Brand
• Radiomarine Corporation of America, New York

• Year
• 1949

• Category
• RADAR equipment

• Radiomuseum.org ID
• 319969

• • alternative name: RMCA

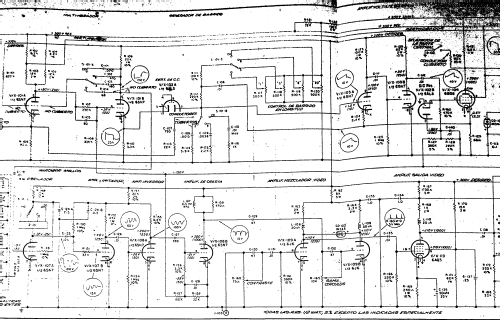

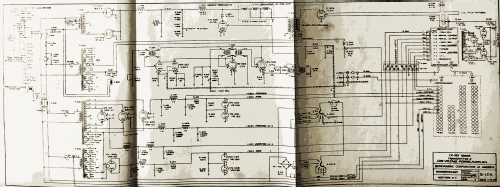

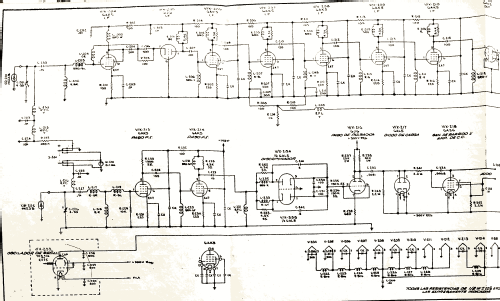

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 41

• Valves / Tubes
• 6SN7 6AL5 6SN7 6BG6 2X2 6SN7 6SN7 6J6 6AQ5 6AK5 6J6 6AK5 6AK5 6AK5 6AK5 6AK5 2K25 6AK5 6AK5 6AL6 6J6 6AL6 6AS6 6J6 12AU7 6SN7 8013A 8013A 6SN7 4C35 6V6 6V6 5R4GY 5R4GY 5R4GY 5R4GY 5R4GY 1V2 1V2 725A 7MP7

• Main principle
• Special principle (see notes)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Radar CR103 - Radiomarine Corporation of

• Notes

• VALVULAS:

  Esquema visualizador: 6SN7 6AL5 6SN7 6BG6 2X2 6SN7 6SN7 6J6 6AQ5

  Esquema receptor: 6AK5 6J6 6AK5 6AK5 6AK5 6AK5 6AK5 2K25 6AK5 6AK5 6AL6 6J6 6AL6 6AS6 6J6 12AU7

  Esquema transmisor: 6SN7 8013A 8013A 6SN7 4C35 6V6 6V6 5R4GY 5R4GY 5R4GY 5R4GY 5R4GY 1V2 1V2 725A

  Tubo para la pantalla: 7MP7

• Mentioned in
• -- Schematic

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
