Stereo-Generator SMG 1

• Country
• Denmark

• Manufacturer / Brand
• Radiometer; København - Copenhagen

• Year
• 1964

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 88279

• Picture

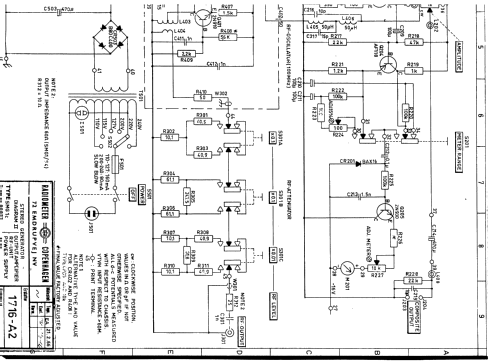

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 110; 115; 127; 200; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo-Generator SMG 1 - Radiometer; København -

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 490 x 150 x 205 mm / 19.3 x 5.9 x 8.1 inch

• Notes
• Stereocoder für Labor und Entwicklungsarbeiten, 90-MHz-Oszillator, für den Service von Stereoempfängern geeignet.

• Price in first year of sale
• 1,695.00 DM

• Source of data
• - - Data from my own collection

• Mentioned in
• Funkschau 1964, Heft 6, S.133

• Author
• Model page created by Georg Richter. See "Data change" for further contributors.
