Comprobador Universal (tester) MF-107
Radiométrico, Carlos Ferrer; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Radiométrico, Carlos Ferrer; Barcelona
- Year
- 1967 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 313459

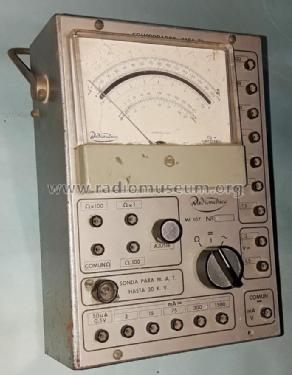

Foto cortesía de Jose Vert Daboice
- Wave bands
- - without
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Comprobador Universal MF-107 - Radiométrico, Carlos Ferrer;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 120 x 150 x 90 mm / 4.7 x 5.9 x 3.5 inch
- Notes
-
Radiométrico MF-107
- 10 Escalas VDC de 0,1 a 1500 V
- 7 Escalas IDC de 50 μA a 1500 mA
- 6 Escalas VAC de 7,5 a 1500 V
- 3 Escalas de R hasta 20 MΩ
- 10 Escalas de P y dB de 10 mW a 140 W y de 0 a 51,5 dB
Sonda MAT hasta 30 kV suministrada aparte
- Author
- Model page created by Jose Luis Villabona Horreo. See "Data change" for further contributors.
