E IF & AF amp. Radiomobile Smith&Sons
Radiomobile Ltd., Cricklewood Works, London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Radiomobile Ltd., Cricklewood Works, London
- Year
- 1959 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 165403
-
- alternative name: S.Smith and Sons

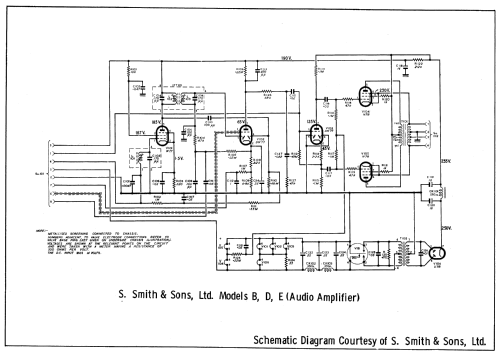

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- - without
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: E IF & AF amp. Radiomobile Smith&Sons - Radiomobile Ltd., Cricklewood
- Shape
- Chassis only or for «building in»
- Notes

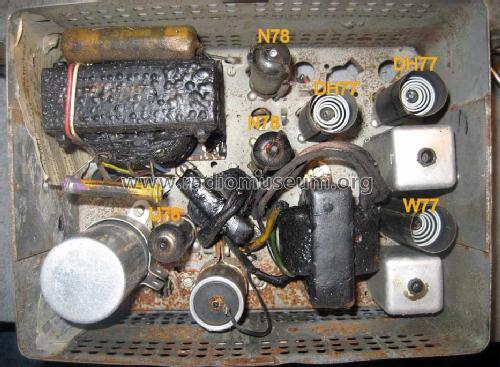

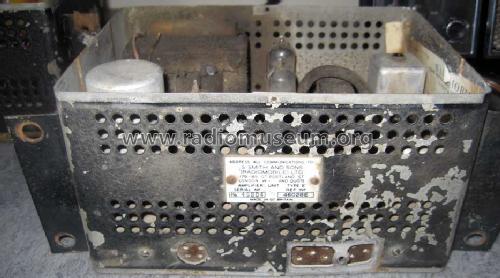

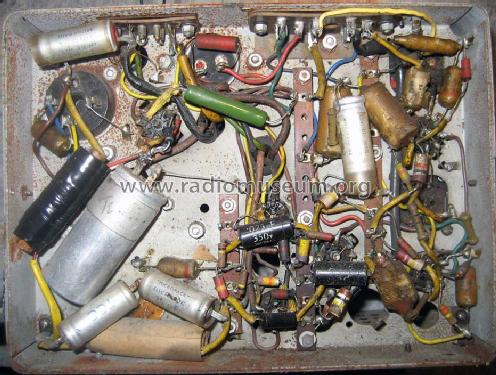

- Although a doublet, we list this model, since Sam's Photofacts allocate it to the mother company Smith. U.S. Importer for S.Smith&Sons Ltd. Products: Nisonger Sales Co. 125 E. Main St. New Rochelle, N. Y. This unit comprises of last IF amp, Det, AF amp, & PSU for matching car radio control units such as model 4222 - or 4220 as you see here.
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-59, Set 444, Servicer)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
