• Country
• Norway

• Manufacturer / Brand
• Radionette; Oslo

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71129

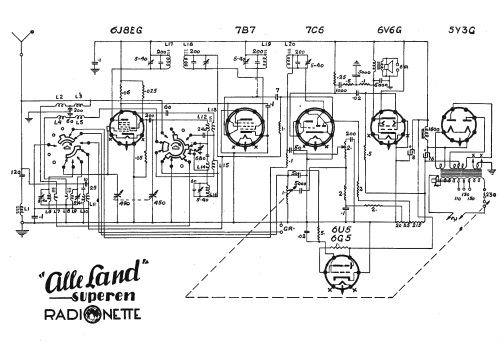

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8EG 7B7 7C6 6V6G 6U5 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

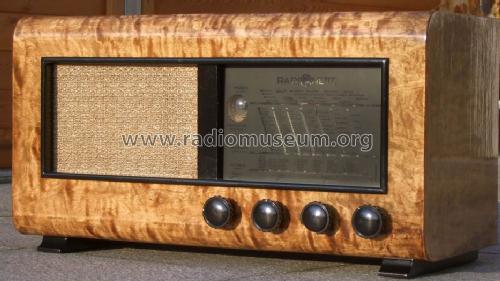

• Model: Alle Land superen [with magic eye] - Radionette; Oslo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 550 x 300 x 250 mm / 21.7 x 11.8 x 9.8 inch

• Notes

• Siehe auch das Radionette-Modell "Alle Land superen" ohne magisches Auge.

  See also the Radionette model "Alle Land superen" without magic eye.

• Price in first year of sale
• 225.00 NKr

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
