• Country
• Norway

• Manufacturer / Brand
• Radionette; Oslo

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96925

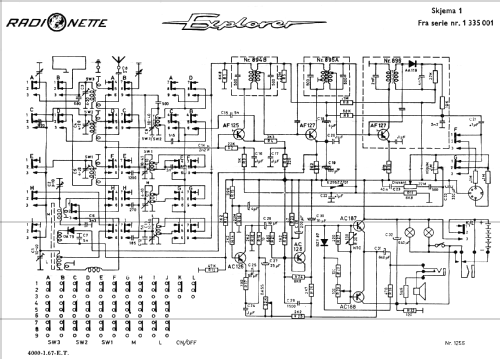

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Explorer - Radionette; Oslo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 200 x 90 mm / 11.8 x 7.9 x 3.5 inch

• Notes
• Available in blue, green, and possibly other colors.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
