Kurér Auto (Kurer)
Radionette; Oslo
- Country
- Norway
- Manufacturer / Brand
- Radionette; Oslo
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71338
Aus QXL.no VK:brummle #692721098
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / 110; 130; 150; 210; 230 / 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- from Radiomuseum.org

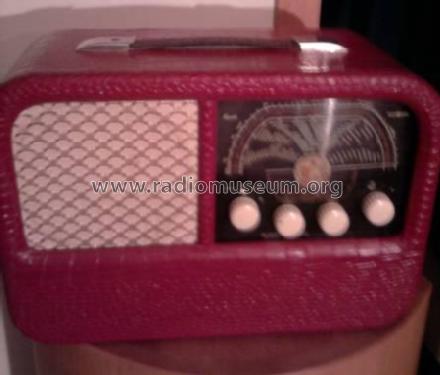

- Model: Kurér Auto - Radionette; Oslo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 210 x 90 mm / 11 x 8.3 x 3.5 inch
- Net weight (2.2 lb = 1 kg)
- 3.8 kg / 8 lb 5.9 oz (8.37 lb)
- Price in first year of sale
- 415.00 NKr.
- Author
- Model page created by Ernst Rykkje. See "Data change" for further contributors.
- Other Models
-
Here you find 140 models, 129 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radionette; Oslo
Collections
The model Kurér Auto (Kurer) is part of the collections of the following members.
Forum contributions about this model: Radionette; Oslo: Kurér Auto
Threads: 2 | Posts: 6
Hallo,
es sind dem Model Bilder zugeordnet, die hier nicht hingehören, weil andere Röhrenbestückung. Da ist die DK32 zu sehen (rot). Ich denke, die Bilder gehören eher auf dieses Modell.
Gruß
MS
Michael Schott, 30.Jan.19
I found earlier version of this radio, equipped with tubes: DK32 DF91 DAF91 DL94, serial number 349319. Photo of chassis and schematic attached
Tomasz Szczesniak, 11.Dec.17
