• Country
• Norway

• Manufacturer / Brand
• Radionette; Oslo

• Year
• 1963–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 228198

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Menuett [AM Seksjon] - Radionette; Oslo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 220 x 190 mm / 22.4 x 8.7 x 7.5 inch

• Notes

• Frequency bands:

  • SW: 21000 - 5900 kc
  • Fishery: 4800 - 1700 kc
  • MW: 1600- 520 kc
  • LW: 320 - 150 kc.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

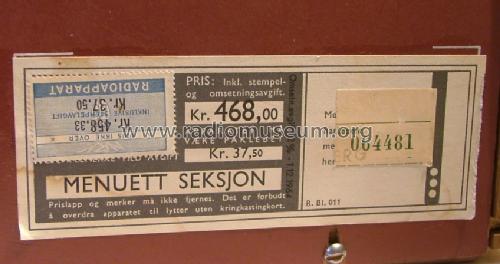

• Price in first year of sale
• 468.00 Kr.

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
