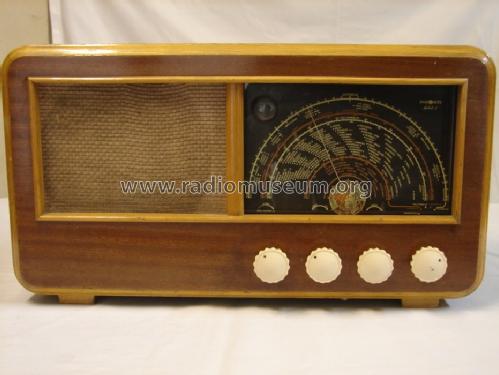

Solist 2 Serie III (3) from nr. 440001, with magic eye
Radionette; Oslo
- Country
- Norway
- Manufacturer / Brand
- Radionette; Oslo
- Year
- 1949–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71390
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Solist 2 Serie III [from nr. 440001, with magic eye] - Radionette; Oslo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 500 x 280 x 200 mm / 19.7 x 11 x 7.9 inch
- Notes
-
See also Radionette Solist 2 without magic eye tube.
- Price in first year of sale
- 280.00 NKr.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Ernst Rykkje. See "Data change" for further contributors.
