Symfoni
Radionette; Oslo
- Country
- Norway
- Manufacturer / Brand
- Radionette; Oslo
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71355
aus ebay, #251432400777, Verkäufer moseskov
aus ebay, #251432400777, Verkäufer moseskov
aus ebay, #251432400777, Verkäufer moseskov

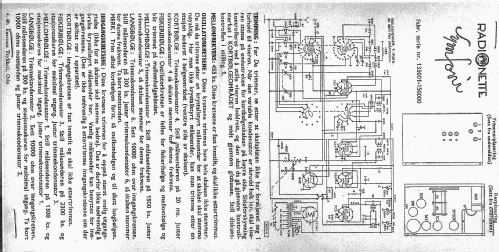

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Symfoni - Radionette; Oslo
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 340 x 220 mm / 22.8 x 13.4 x 8.7 inch
- Notes
-
L, M, K und Fischereiband.
See also model Simfoni Luksus (including schematic, Fabr. serie fra nr. 162001) with ECH21 and EF22 instead of 7S7 and 7A7.
- Price in first year of sale
- 517.00 NKr.
- Author
- Model page created by Ernst Rykkje. See "Data change" for further contributors.
