Symfonie-3D EF89 and EM81, from no. 642001
Radionette; Oslo
- Country
- Norway
- Manufacturer / Brand
- Radionette; Oslo
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309203

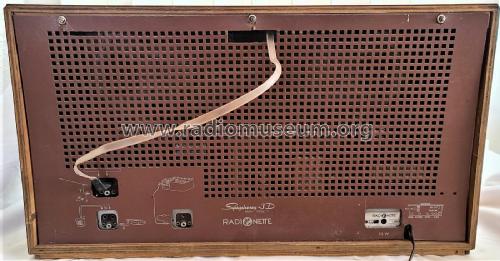

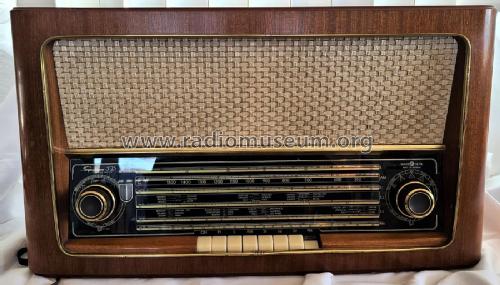

US model
US model
US model
US model
US model. Detail of left side of dial.

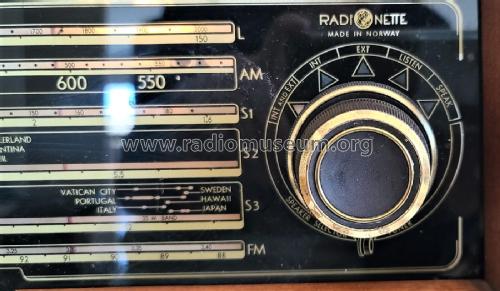

US model. Detail of right side of dial.

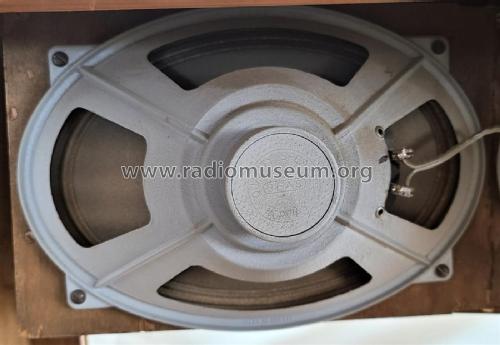

US model. Both speakers are the same.

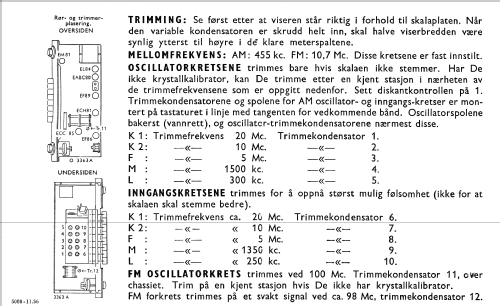

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Symfonie-3D [EF89 and EM81, from no. 642001] - Radionette; Oslo
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 670 x 370 x 240 mm / 26.4 x 14.6 x 9.4 inch
- Notes
-
See also Radionette Symfonie-3D with EF41 and EM85 instead of EF89 and EM81.
- Net weight (2.2 lb = 1 kg)
- 12.8 kg / 28 lb 3.1 oz (28.194 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
