Mayfair 530
Radiophone Corp.; Los Angeles
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radiophone Corp.; Los Angeles
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 188126
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Material
- Various materials
- from Radiomuseum.org

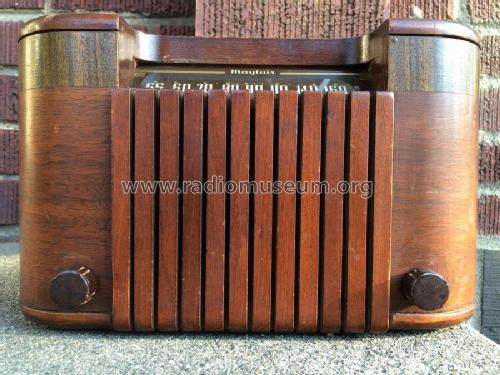

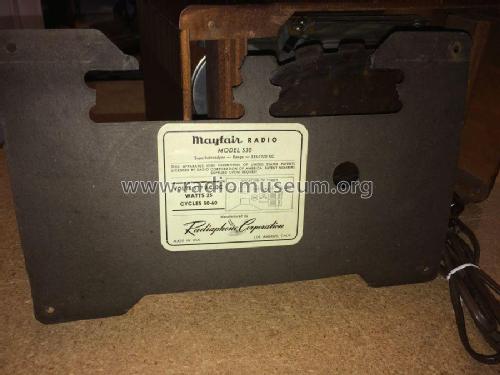

- Model: Mayfair 530 - Radiophone Corp.; Los Angeles
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 7.75 x 8 inch / 305 x 197 x 203 mm
- Notes
-

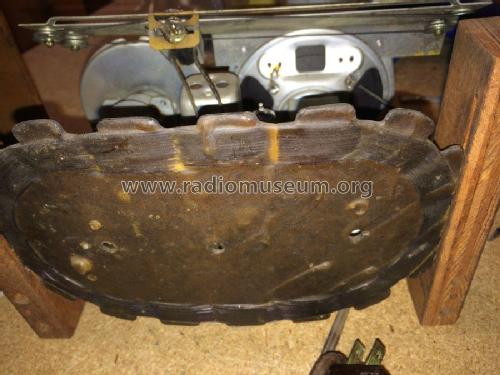

Built-in loop antenna.
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 25, Date 9/47, Folder 4715-20)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
