Preziosa - Radio Fono Valigia R. F. 5

Radio Preziosa; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 320953

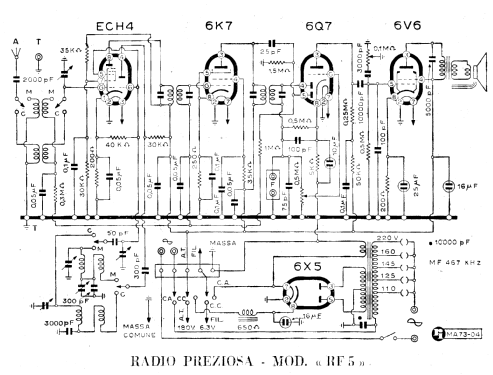

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 467 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 110; 125; 145; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2.5 W (undistorted)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Preziosa - Radio Fono Valigia R. F. 5 - Radio Preziosa; Milano
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 460 x 170 x 320 mm / 18.1 x 6.7 x 12.6 inch
  • Notes

  • Valigia in fustagno con bordi in pelle contenente, oltre al necessaire da viaggio, una Radio Onde Medie ed Onde Corte ed un giradischi Lesa a 78 giri.

    Oltre al funzionamento da rete, poteva essere alimentata in corrente continua con 6,3 V per i filamenti e 180 V di tensione anodica.

  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Mentioned in
  • -- Original prospect or advert (Notiziario di Radio Industria ottobre 1946)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
