Clitumno 210P
Radiopron (Radio F.lli Pron); Torino
- Country
- Italy
- Manufacturer / Brand
- Radiopron (Radio F.lli Pron); Torino
- Year
- 1933–1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 280136

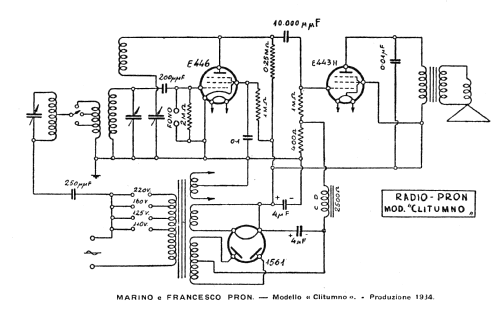

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Clitumno 210P - Radiopron Radio F.lli Pron;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Modello 1935 con serie di valvole americane (57 2A5 80)
- Mentioned in
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)
- -- Original prospect or advert (L'antenna, n.7, aprile 1935)
- Literature/Schematics (2)
- -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 22 models, 11 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radiopron (Radio F.lli Pron); Torino
