- Country
- Great Britain (UK)
- Manufacturer / Brand
- Radio Rentals; London
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84890

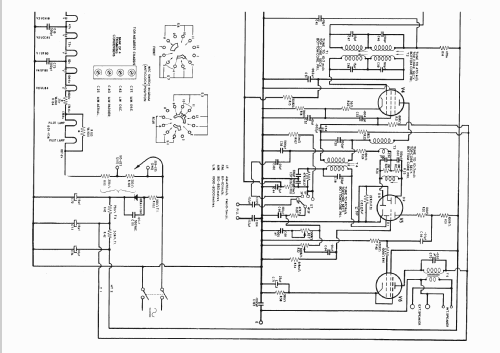

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- AC/DC-set / 195-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 222 - Radio Rentals; London
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 460 x 320 x 220 mm / 18.1 x 12.6 x 8.7 inch
- Notes
- There are very few datails of Radio Rentals models available, as they restricted information to their service personnel. This model (222) is thought to be manufactured by Baird and based on the Baird 232 series of chassis. Selenium rectifier.
- Other Models
-
Here you find 26 models, 22 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radio Rentals; London
