- Country
- Great Britain (UK)
- Manufacturer / Brand
- Radio Rentals; London
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126900
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 195; 215-236; 236-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

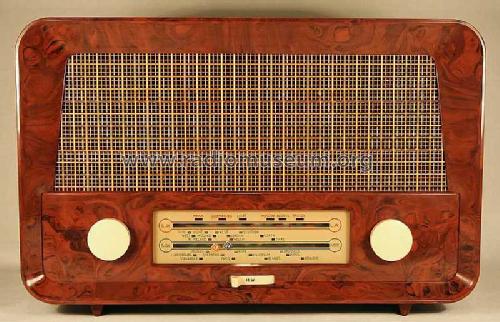

- Model: 224 - Radio Rentals; London
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 350 x 230 x 150 mm / 13.8 x 9.1 x 5.9 inch
- Notes
- Radio Rentals restricted service data to their engineers so data and schematics are difficult to find. This model is believed to be based on the Baird 208 chassis.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
