- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1995
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239971
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 12-617 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 85.7 x 150.8 x 39.7 mm / 3.4 x 5.9 x 1.6 inch
- Notes
-

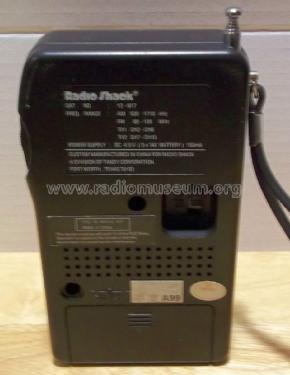

Radio Shack AM/FM VHF TV Pocket Radio Model 12-617.
Tuning Range: AM 530 - 1710 kHz, FM 88 -108 MHz
TV1 58,6 - 88,4 MHz (Channels 2-6)
TV2 179 - 216 MHz (Channels 7 - 13)
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
