Archer CB Watt/ SWR meter 21-250
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1975
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 336223
Radio Shack Archer 21-250 CB Watt/SWR meter
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Archer CB Watt/ SWR meter 21-250 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 7.5 x 4.25 x 4.25 inch / 191 x 108 x 108 mm
- Notes
-

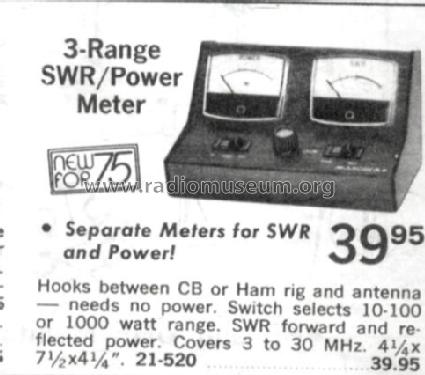

The Radio Shack Archer model 21-250 CB Watt/ SWR meter covers 3 to 30 MHz. A switch selects 10, 100, or 1000 watts full scale. The meters show forward RF power out and reflected power, SWR (standing wave ratio). Accuracy of RF power in watts is dependent upon a 50 ohm resistive load.
- Price in first year of sale
- 39.95 USD
- Mentioned in
- Radio Shack Catalog (1975, page 129)
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
