• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1975

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 359778

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/455 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Scanner - multiband or special

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 0.15 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pocket-Scan PRO-6 Cat. No. 20-171 - Radio Shack Tandy, Realistic,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 7.5 x 1.25 inch / 70 x 191 x 32 mm

• Price in first year of sale
• 119.95 USD

• Mentioned in
• - - Manufacturers Literature (Owners Manual)

• Literature/Schematics (1)

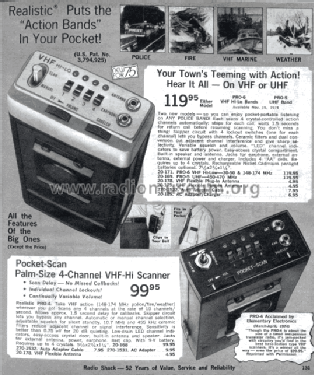

• Radio Shack Catalog (1975, page 131)

• Author
• Model page created by Ed Riley. See "Data change" for further contributors.
